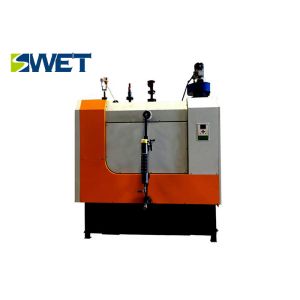

500Kg Automatic Biomass Steam Boiler For Clothes Cleaning Industry
Product description
1. Energy saving and environmental protection: the use of energy saving, environmental protection renewable fuel, affordable. The biomass steam generator using smokeless complete combustion. Its operating cost is 1/6 of the electric boiler and 1/3 of the oil and gas fired boiler.
2. Scientific design: the structure of the biomass steam generator and special gasification combustion of the fuel can be fully burned, multi link baffle heat exchanger, the heat preservation, reduce heat loss, improve the thermal efficiency of the boiler is 30%.
Biomass steam generator features
1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%
2. High thermal efficiency: semi-gasification combined with tangential cyclone air distribution design, the formation of fire-burning, the combustion rate of 90% or more; with waste heat recovery flue gas
3. System, using advanced glass fiber cotton multi-layer insulation, heat loss, low energy consumption, high thermal efficiency
Advantage
1. Equipped with high-quality pressure controller, safety valve, with overpressure, low water level, and overheating protection and other multiple protection, to ensure product quality;
2. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials;
3. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;
4. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator using the modular combination of alternatives.

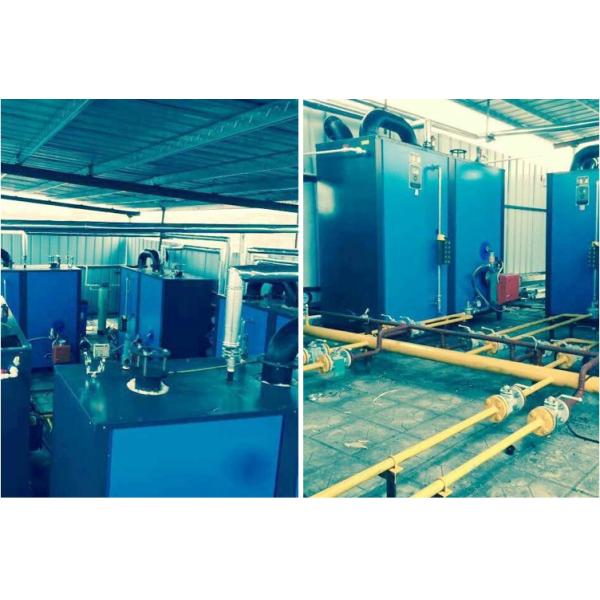

Installation requirements:
This section of the steam generator installed just connected to the water pipes, sewage pipes, steam pipes and exhaust pipes can be, waste heat recovery tank can be configured according to the needs of the company can be detailed installation of the video guidance of drawings at a glance, and readily available Install consulting services.
| Generator product model | LHS0.1-0.7-S | LHS0.15-0.7-S | LSS0.2-0.7-S | LSS0.3-0.7-S | LSS0.4-0.7-S | YDZ0.5-0.7-S |
| preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
| Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
| Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Dimensions(Length × width × height)mm | 1600*900 *1900 | 1600*900 *1900 | 2150*950 *2400 | 2000*1400 *2700 | 2700*1100 *2450 | 2200*1500 *2500 |
