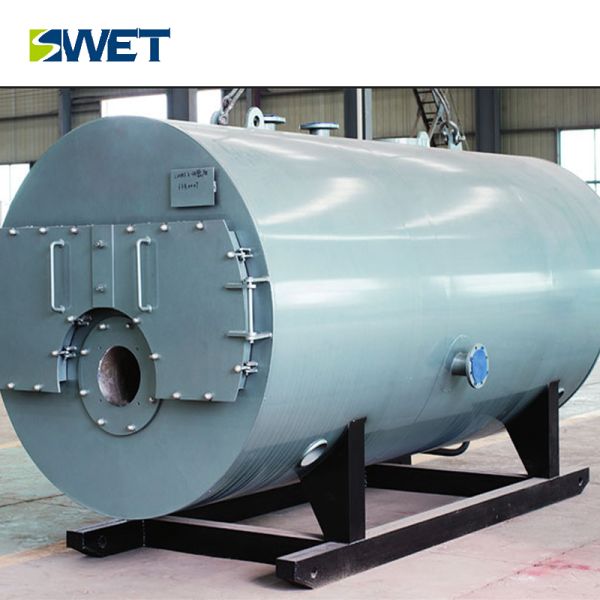

Simple Structure Natural Gas Steam Boiler Low Noise Quick Installation

Name: Simple Structure Natural Gas Steam Boiler Low Noise Quick Installation
Brand: SWET
Price: 1 USD

Wholesale Simple Structure Natural Gas Steam Boiler Low Noise Quick Installation from china suppliers

Brand Name : SWET

Model Number : WNS6-1.25-Y、Q-3011

Certification : ISO9001

Place of Origin : Henan China

MOQ : 1 Set/Sets

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement

Supply Ability : 1500 Set/Sets Per Year

Delivery Time : 25-30 work days

Packaging Details : The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements

Rated evaporation : 6 t / h

Rated working pressure : 1.25/1.6 MPa

Rated steam temperature : 194/204℃

Testing efficiency : 96.58 %

Gas consumption : 433.51 Nm³/h

Color : Based on customer's needs

Keywords : gas steam boiler

Model : WNS6-1.25-Y、Q-3011

Contact Now

Quick Installation 1.25Mpa Natural Gas Steam Boiler With Simple Structure

Product description

The series of gas steam boilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability. Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type

Product advantages

1. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise

2. Quick-mounted overall structure, small size, compact structure, easy installation

3. There is no smoke in the gas steam boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefits are remarkable

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model	Rated evaporation	Work pressure	Steam temperature	Feed water temperature	Air consumption	Test efficiency	Transport dimensions
Unit	t/h	MPa	℃	℃	Nm³/h	%	mm
WNS20-2.5-Q(Y)	20	2.5	226	105	1407.5	97.62	8660x3520x4831
WNS20-1.25(1.6)-Q(Y)	20	1.25/1.6	194/204	105	1459	97.51	8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y)	15	1.0/1.25/1.6	184/194/204	105	1126	97.2	7450x3520x4090
WNS10-1.25(1.6)-Q(Y)	10	1.25/1.6	194/204	105	837.25	96.75	6370x2812x3514
WNS8-1.25(1.6)-Q(Y)	8	1.25/1.6	194/204	105	659.25	96.7	6000x2920x3430
WNS6-1.25(1.6)-Q(Y)	6	1.25/1.6	194/204	105	433.51	96.58	5470x2770x3195
WNS5-1.25(1.6)-Q(Y)	5	1.25/1.6	194/204	20	409.33	96.48	5160x2410x3015

Simple Structure Natural Gas Steam Boiler Low Noise Quick Installation
