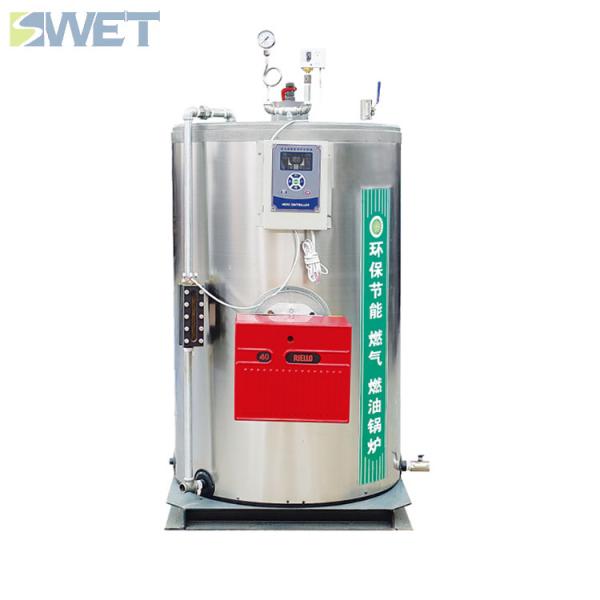

Once Through Vertical steam generator Small Gas Steam Boiler
Full automatic control. Equipped with original combustion equipment, the work is stable and reliable.
Increase the heating surface and make the boiler be more efficient. The heating is uniform, the steam quality is good, the steam pure temperature is high, and the application range is wide. Full automatic interlock protection program, has the protection function of water shortage, overpressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.
Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, water level alarm, safety valve, etc.
Adopt the latest boiler technology, long working life, low maintenance fee.
Technical parameters
| Item | LSS0.05-Q |
| Rated evaporation | Kg/h | 50 |
| Rated pressure | Mpa | 0.3 |
| Rated steam temperature | ℃ | 135 |
| Design thermal efficiency | % | ≥93 |
| Heat transfer area | m² | 1.8 |
| Fuel consumtiion | m³/h | 4.5 |
| Power consumption | kw | 0.65 |
| Applicable fuel | - | natural gas |
| Approx dimensions | L | mm | 600 |
| W | mm | 650 |
| H | mm | 1250 |
| Approx shipping weight | Kg | 280 |
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
Any Question, Please contact us freely !
